The Elster DMG2T (DMG 2T), a mobile UHF wireless telephone link, for 475 - 525 MHz

The Germans called it Richtfunkverkehr or simply "RV" communication


It was manufactured by the C. Lorenz company, its basic design goes back to mid 1930s.

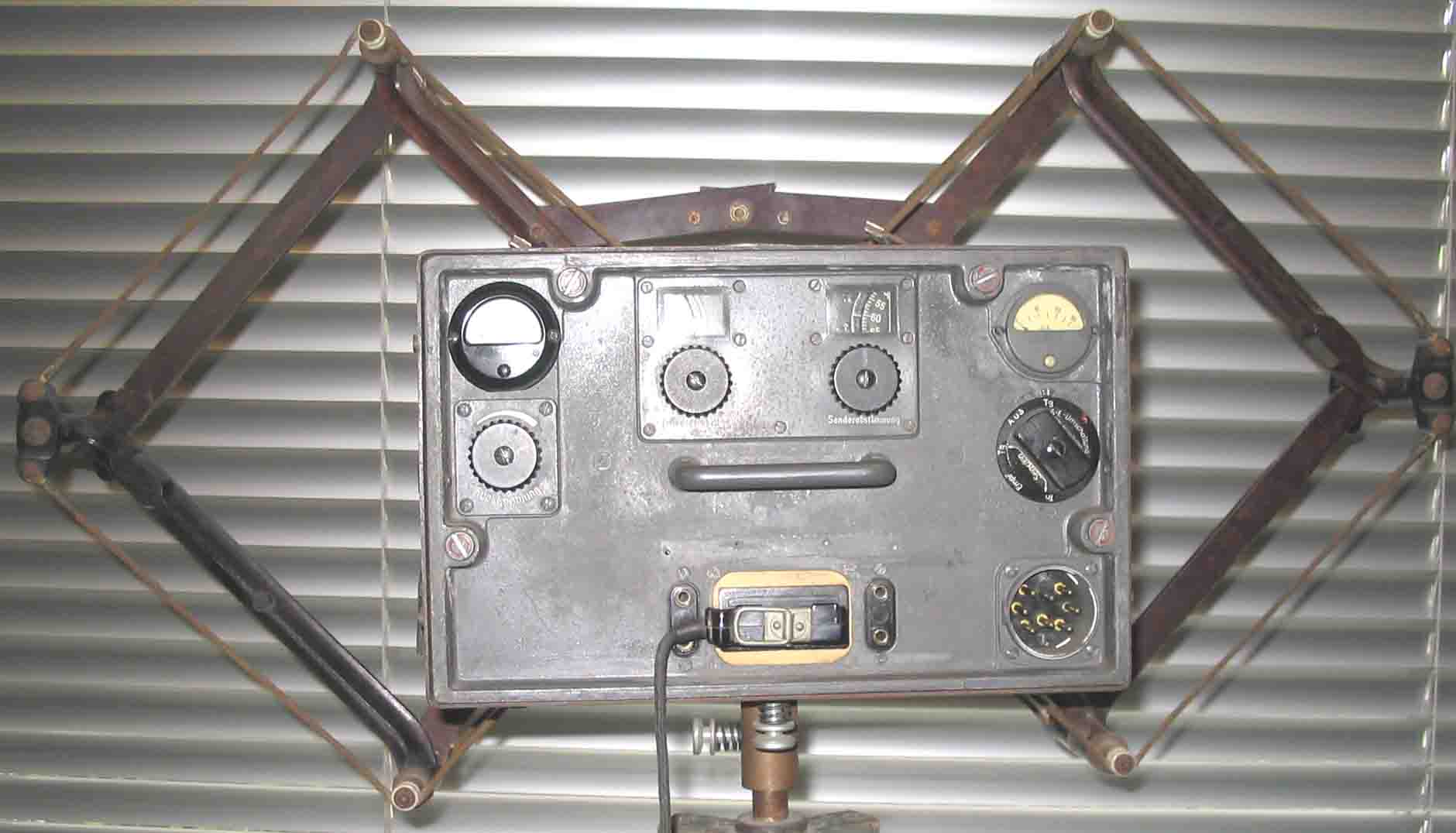

Front view of the Elster apparatus; left hand tuning dial is for the receiver, the right hand dial is setting the transmitter frequency


Rear view of the Elster apparatus

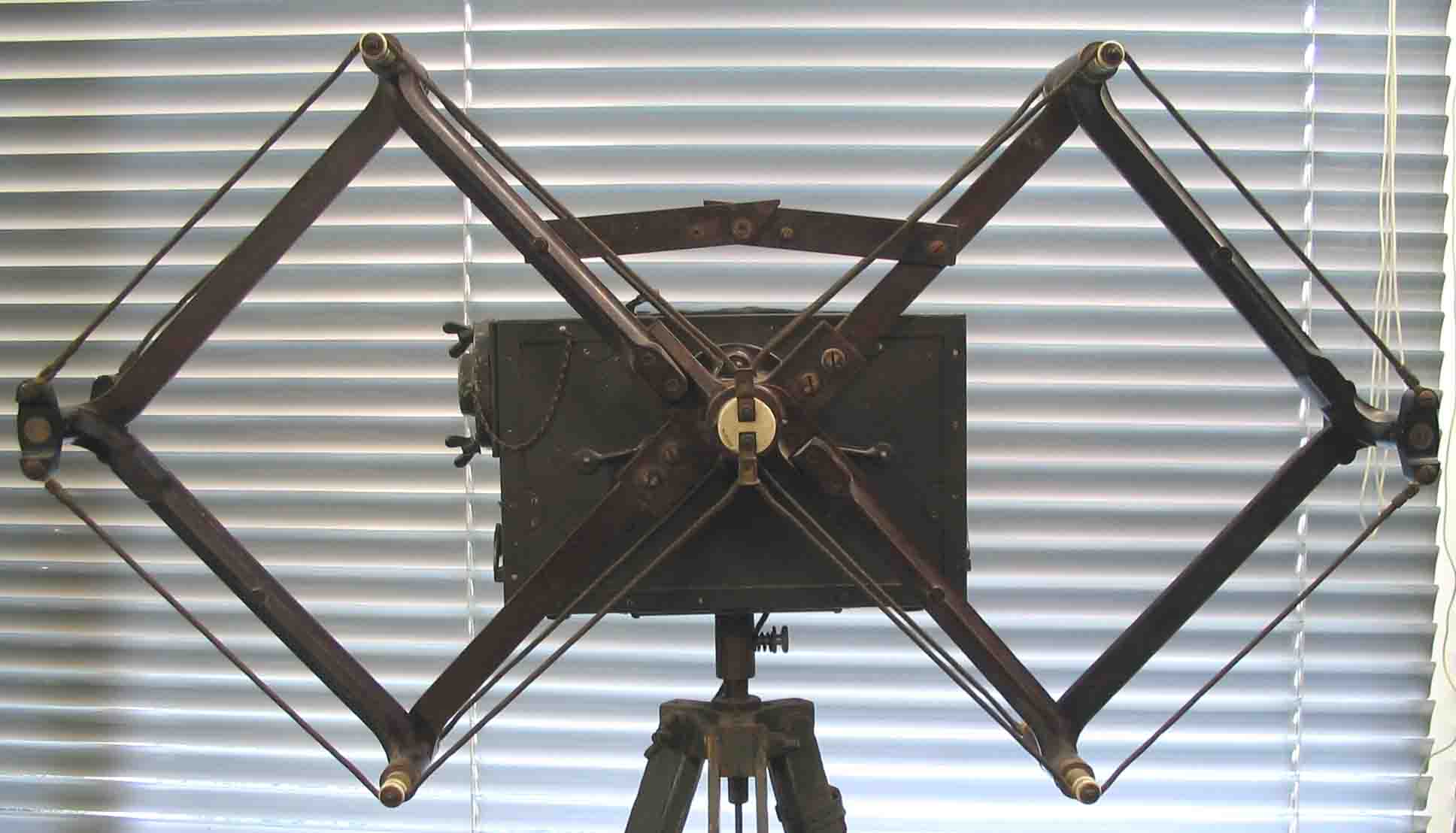

The sawtooth like antenna arrangment (double rhombus, consisting of a director (nearest to us) and a reflector plane section), was based on the Chireix - Mesny antenna configuration (concider: Hollmann on this subject). In contrast to what one would think on the first hand, its antenna polarisation is but vertical! When two sets were employed near to each other, one polarisation plane could be rotated 90 degrees, hence transmissions would be then horizontally polarized.


Inside vision from the rear (case being removed)

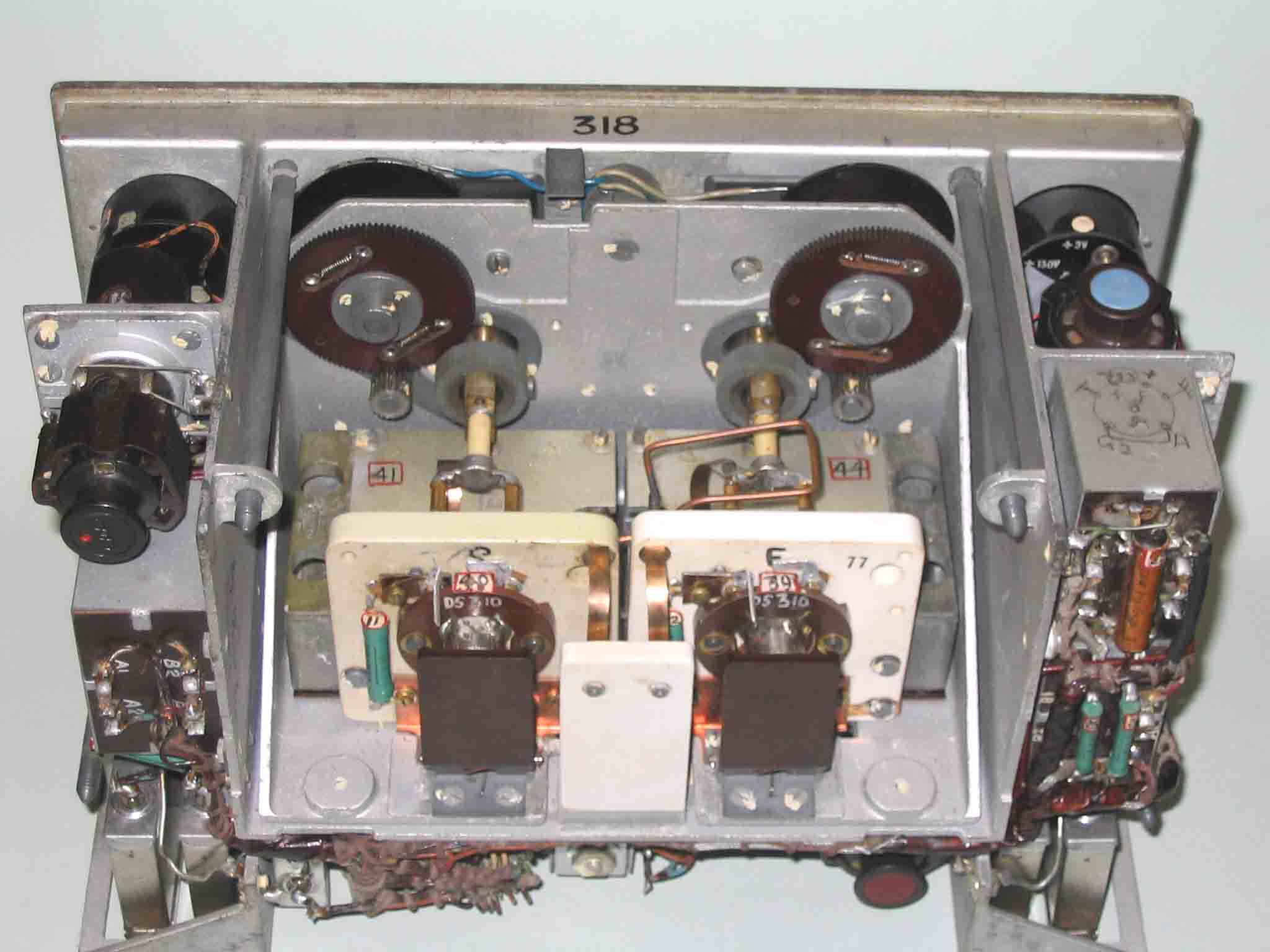

The left hand ceramic plate represents the transmitter stage (S = Sender); right from it we see the receiver section (E = Empfänger). Both are employing Lorenz acorn valves (tubes) type DS310 (designation is just visible). The receiver was rather sensitive, because it was based on the super-regenerative principle. They did not utilize a separation stage between generative receiver front and antenna circuit, they might have considered that on these "ultra high" frequencies, this did not matter too much.


Front cover of NTG 2 (combined, power supply - telegraph/telephone interface - battery charger)

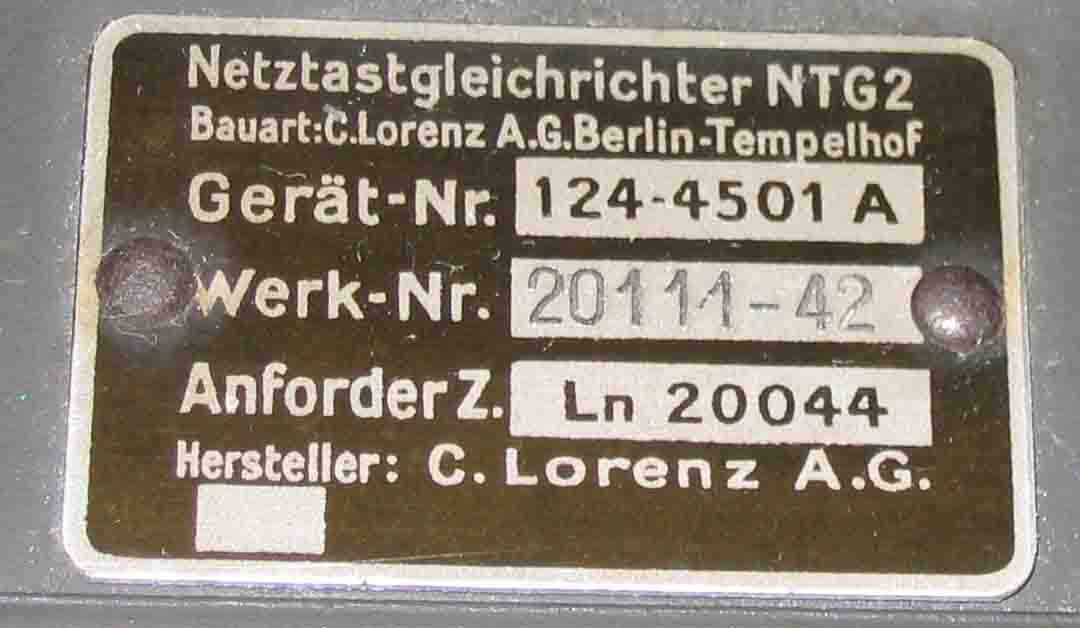

Netztastgleichrichter NTG 2; Bauart C. Lorenz A.G. Berlin - Tempelhof  (Lorenz design)

Gerät-Nr. 124-4501A (drawing number); Werk-Nr. 20111-42 (serial (production) number - manufactured in 1942) However, these kinds of serial numbers are actually masking the real production figures, but it is quite realistic to estimate that its serial number is 111.

Anforder Z. Ln 20044 (Luftwaffe intendance number)

Hersteller does mean: the manufacturer. The designer of a system, does not necessarily imply that they actually have produced it.


The NTG 2 power supply was modular constructed, like most German military apparatus

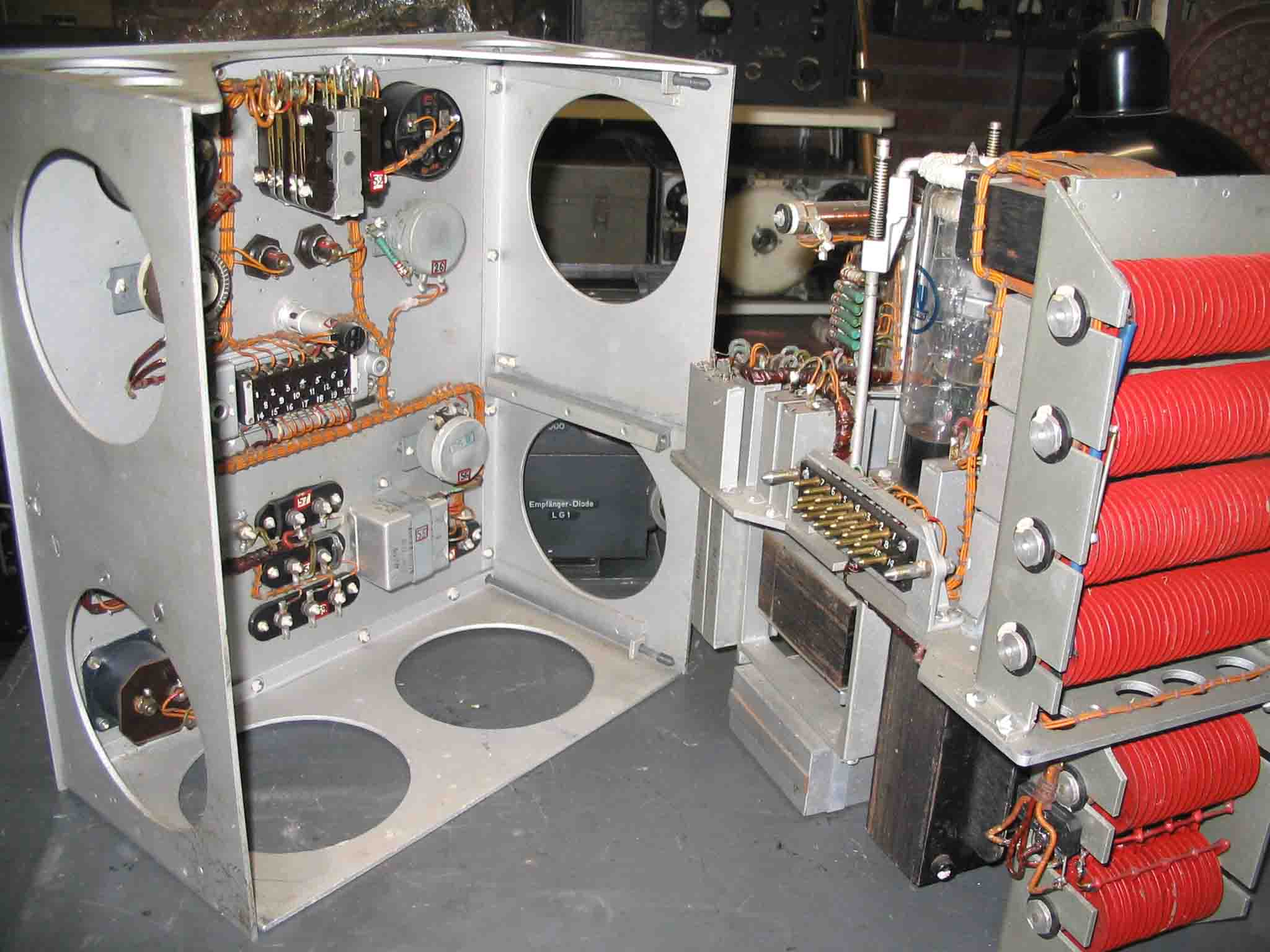

The two very neatly built sections show: on the left hand the main chassis with the wiring of the front panel. On the right, the power supply frame carrying various bridge rectifiers (red discs) for low and high tensions. This photo shows a nice example of proper construction. This module, although its type number plate suggest differently (see previous photo), was actually manufactured by LMT in France.



For some time, this type of equipment had been employed in the "Festung Breslau", during the final months of the war, in 1945 (besieged city of Breslau; since summer 1945 Poland, is called now Wroclaw). Elster apparatus was the only secret communication gear between those inside Breslau and the German military services outside.

The Russians concluded, after due investigations, that there must exist communication between the in- and outside German services. Russian interception services could not, however, find German wireless traffic. They suggested, that the only logic explanation was, an existing hidden telephone line connection. They decided to dig a deep trench around the city of Breslau, as to disrupt any cable connection. What they didn’t were aware of was, that the Germans used an, Ultra High Frequency, Elster DMG2T set, placed on the roof of the main Post Office building. The German station on the other end of the line was erected in the mountains, about 125 km away from Breslau (territory then still held by the German armed forces).


Using my holidays always with reading comprehensive historical studies, in July 2011 I discovered a new historical interaction. The above few lines notice the use of a secret communication link between the encircled and the German forces at about 125 km distance from Breslau. In the book: Joseph Goebbels Tagebücher 1945 Die letzten Aufzeichnungen; for 30 March 1945 (Hoffmann & Campe Verlages, Hamburg (1977?)


On page 384: .... Das kommt mir auch wieder zum Bewusstsein, als ich abends plötzlich einen telefonischen Anruf aus Breslau bekomme. Es ist Hanke gelungen, sich auf einem Wege, den er mir nicht näher schildern kann, eine Telefonleitung nach Berlin zu besorgen. Er äussert sich in diesem Gespräch ...

Please notice that Goebbels' diaries always describe what happened the day previously. Hence, Karl Hanke's (the so-called Gauleiter of Breslau and who represented the highest authority in Breslau) telephone call must have been held on 29 March 1945! What is impressive, is that, although, the Reich was deteriorating and falling into pieces, that it seemingly was still possible to switch a telephone connection with Goebbels in Berlin! It is, from what we know now, understandable that Hanke did not explaine how this telephone link was commenced; as it otherwise might have lifted the secrecy about this wireless link (at about 500 MHz).
