Bouw Radio Zendstation Malabar



Album pages: 20 - 21 - 22 - 23 - 24 - 25 - 26



Starting with page: 20

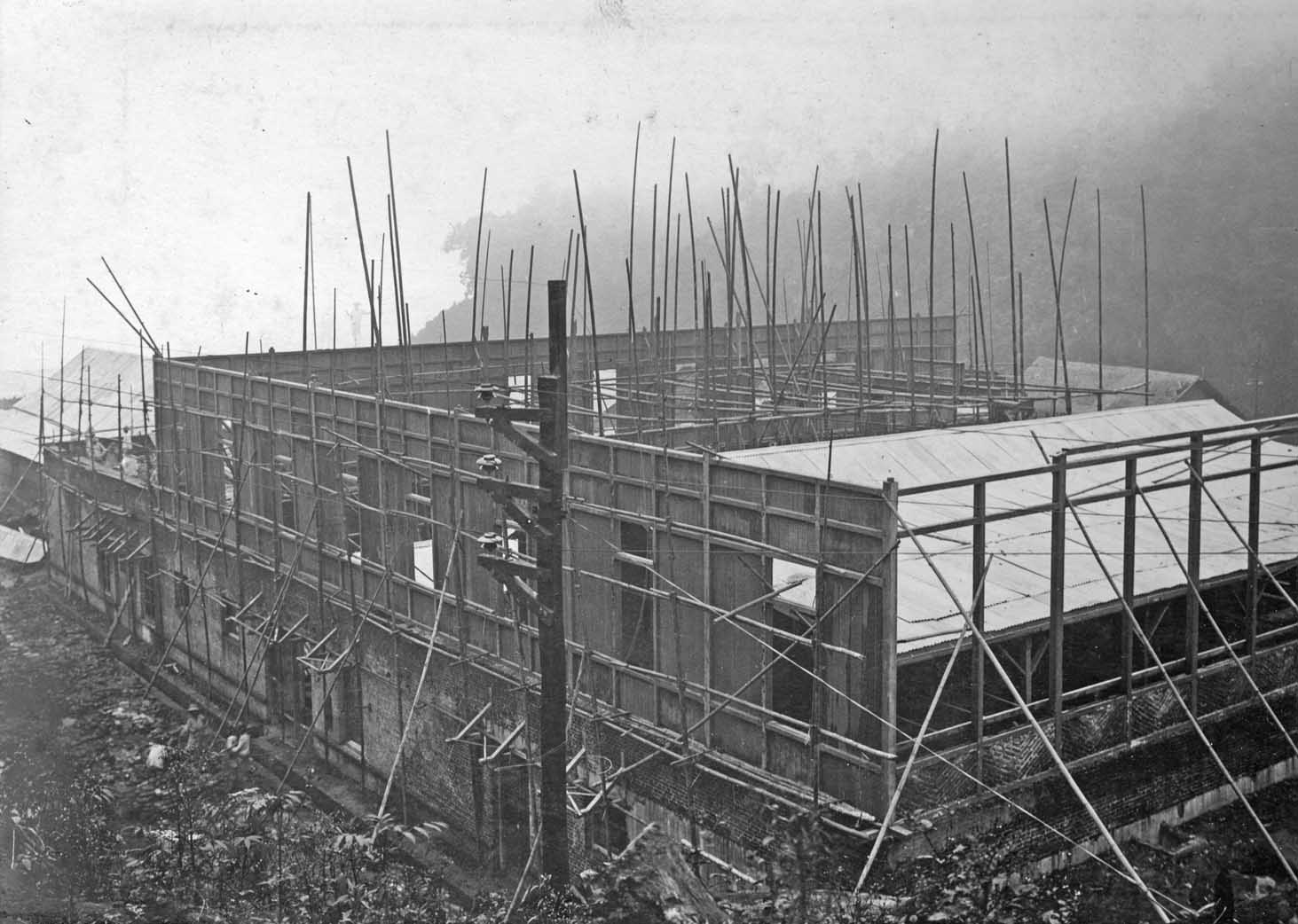

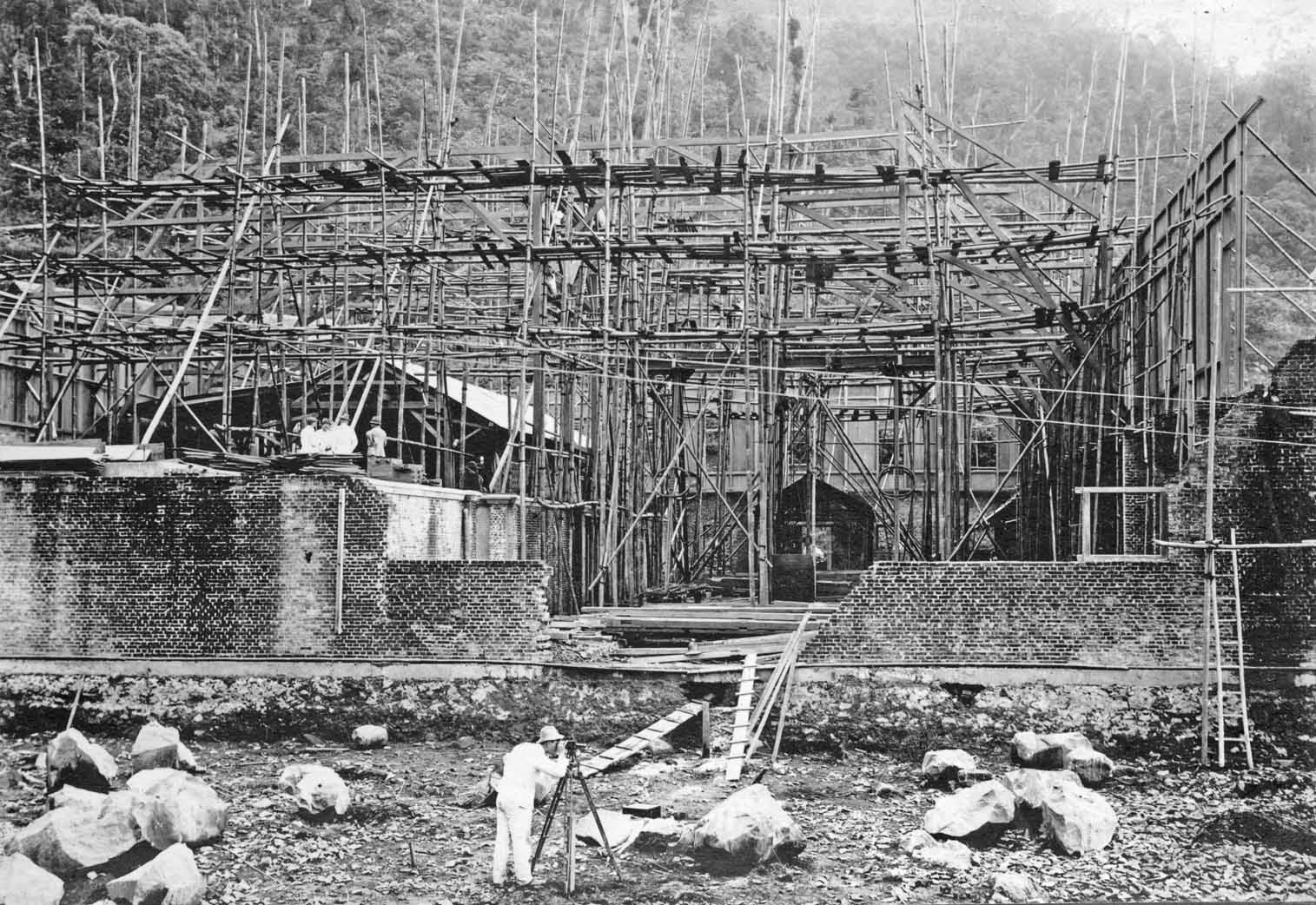

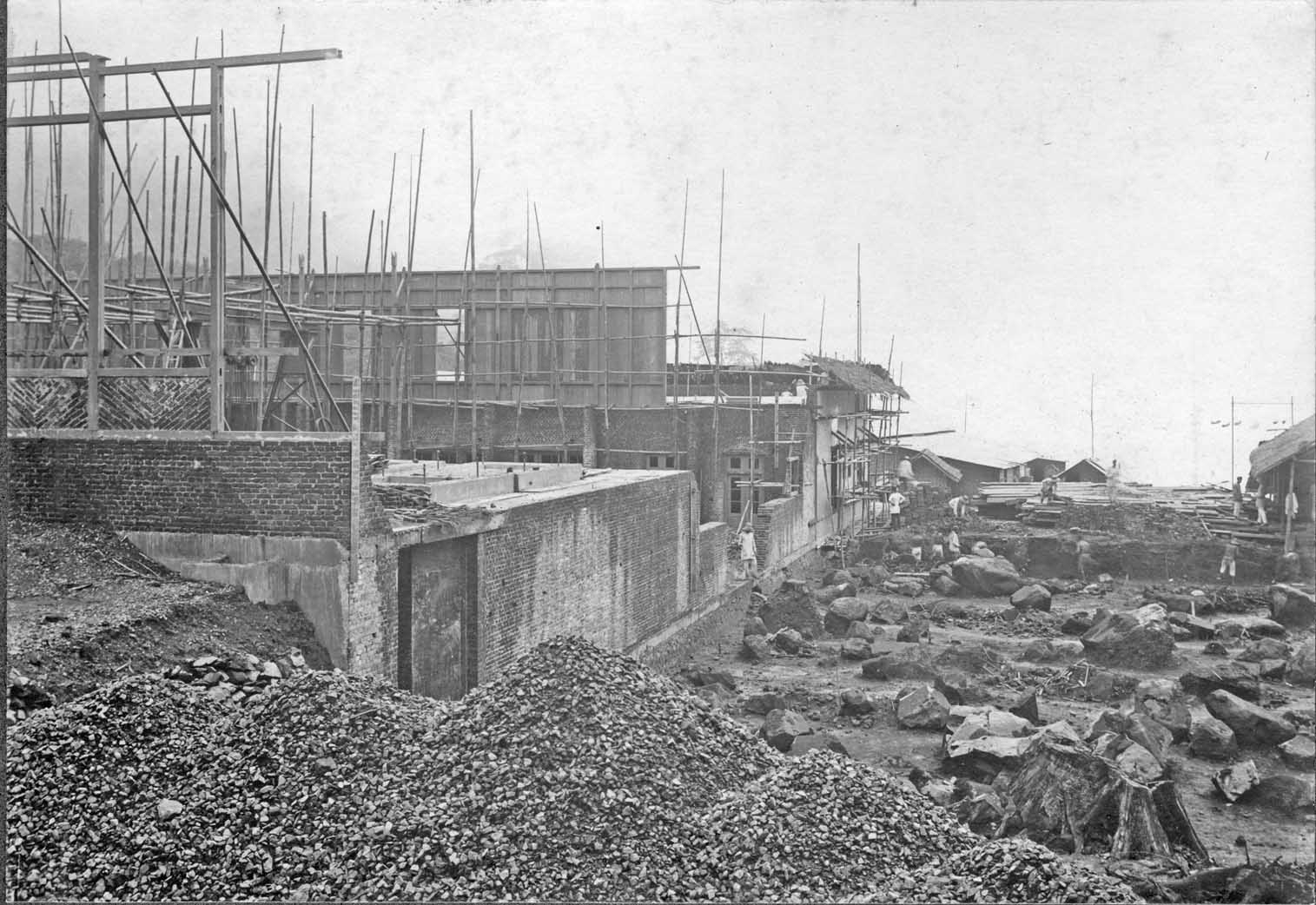

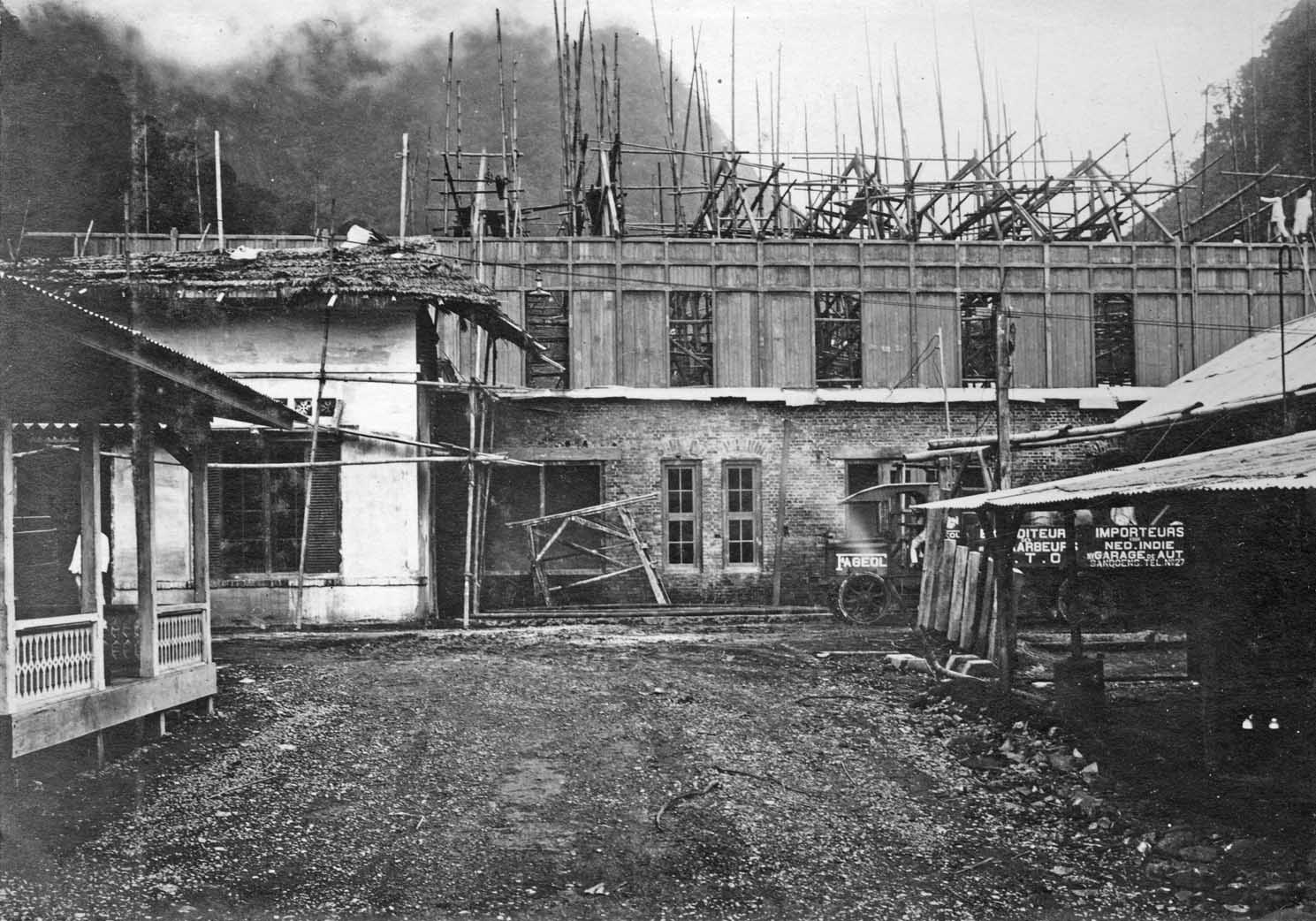

Opbouw Hoofdgebouw





September 1920

Please notice the wide application of bamboo even in today's Indonesia!





October 1920





September 1920





October 1920





Page 21



October 1920





October 1920

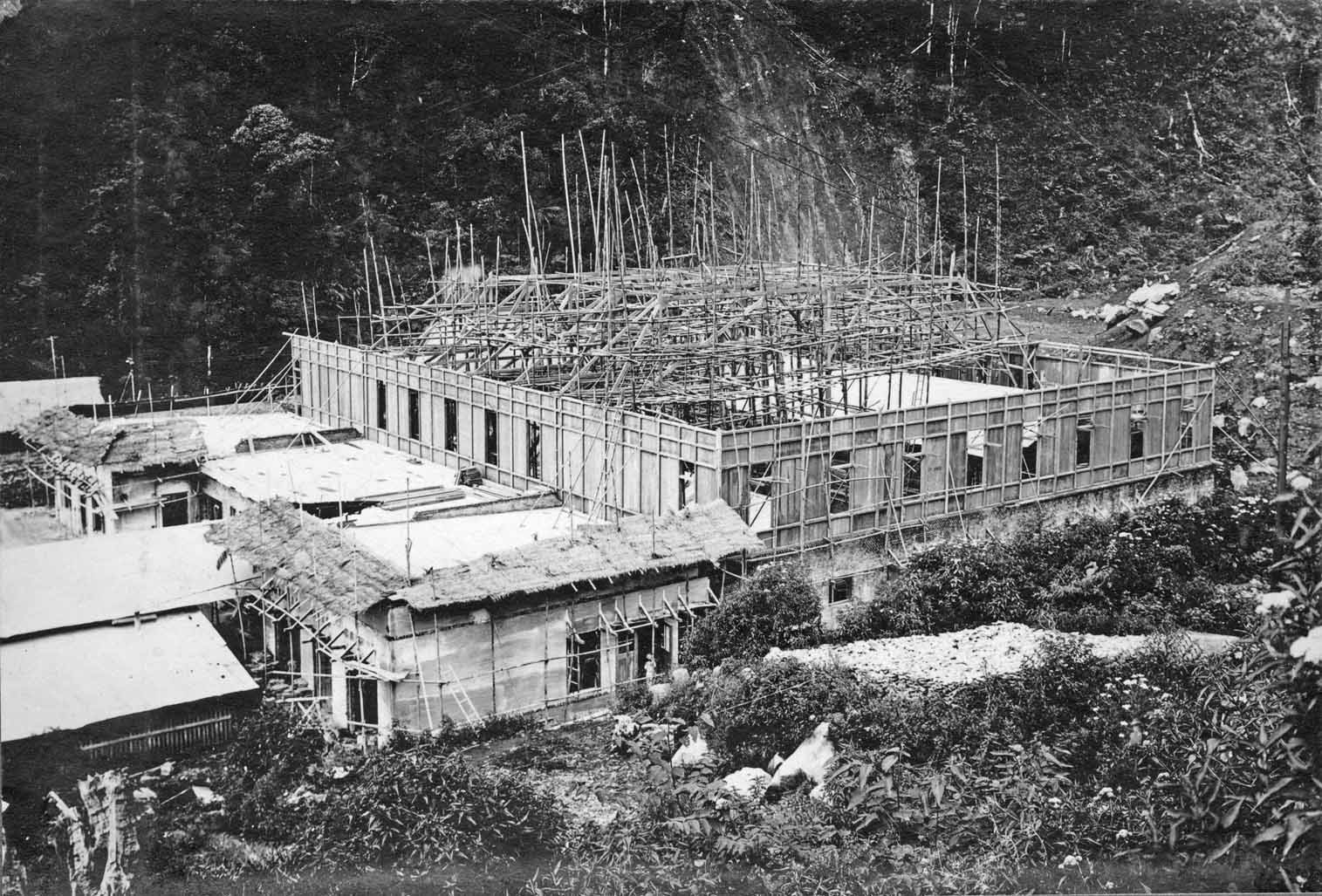

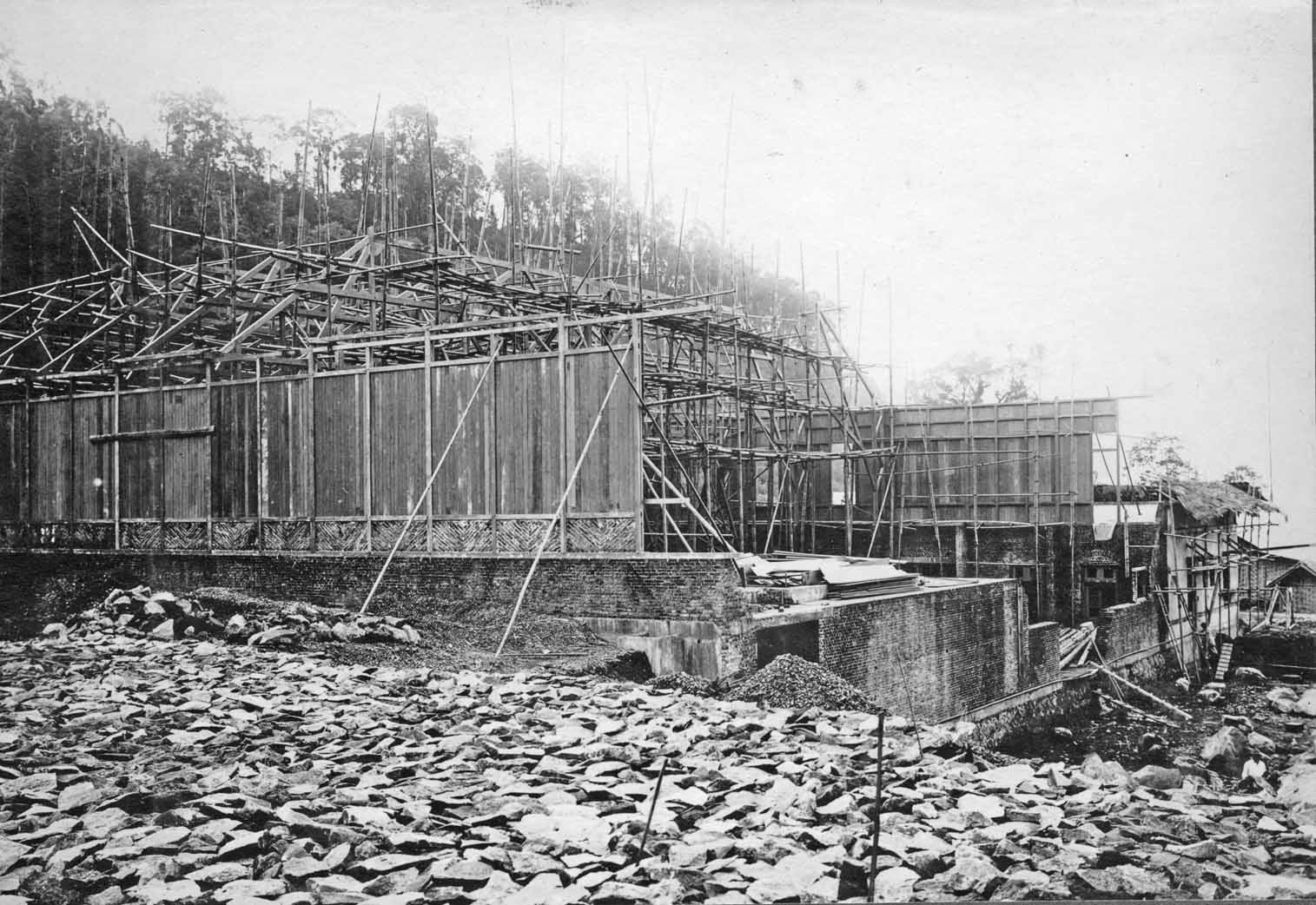

Opbouw Hoofdgebouw

Construction of the main station building




October 1920

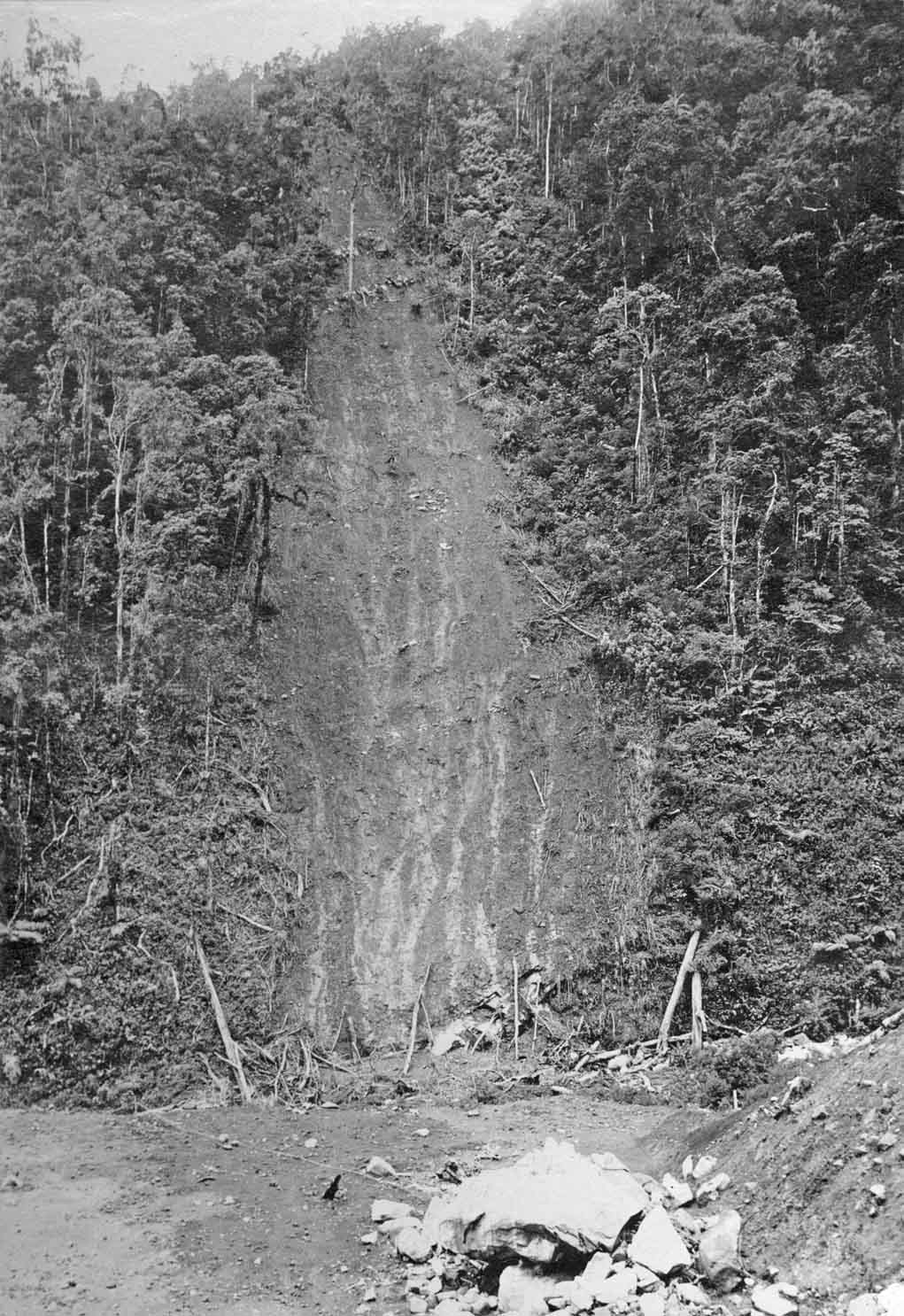

Gleuf voor kabels





Page 22

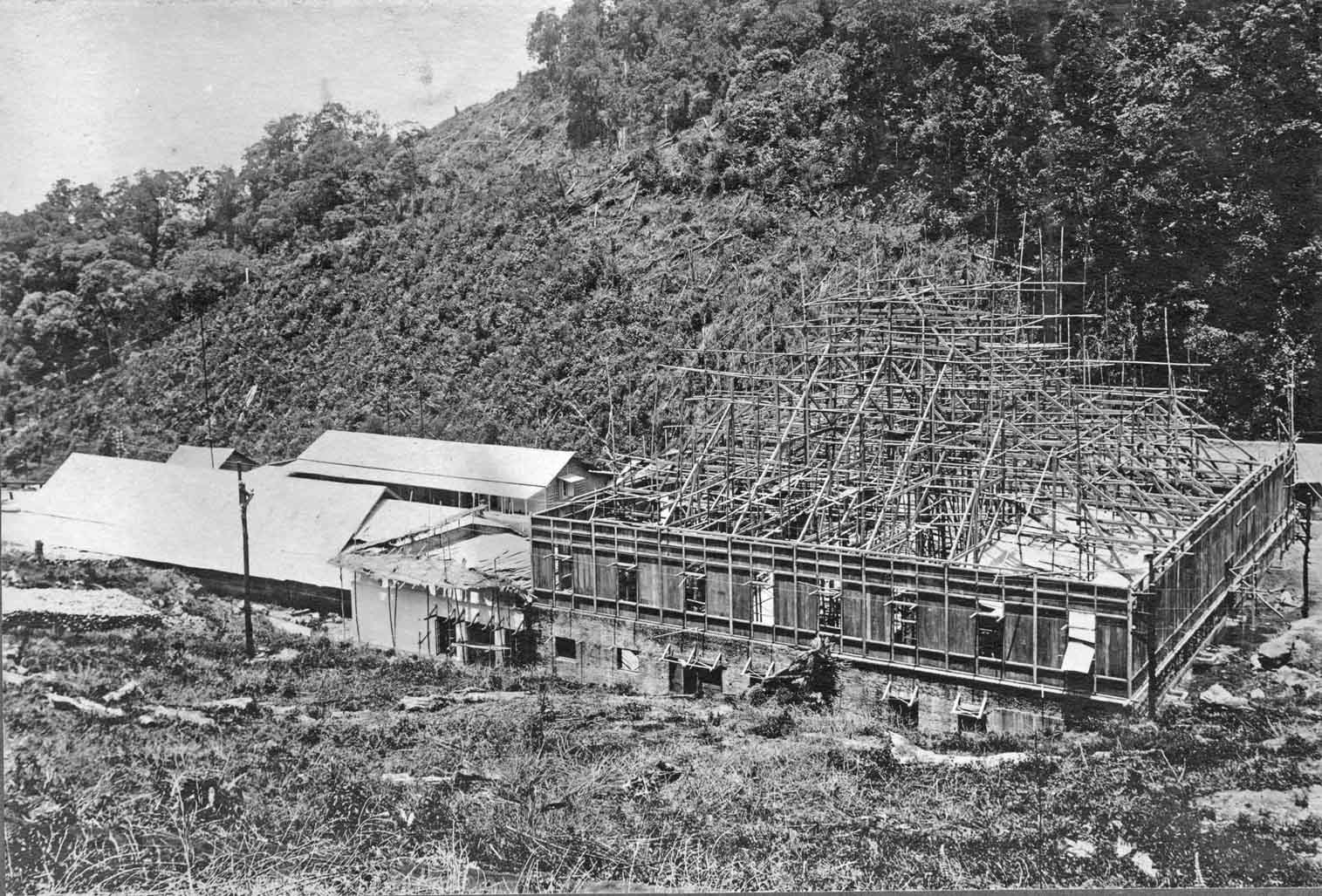

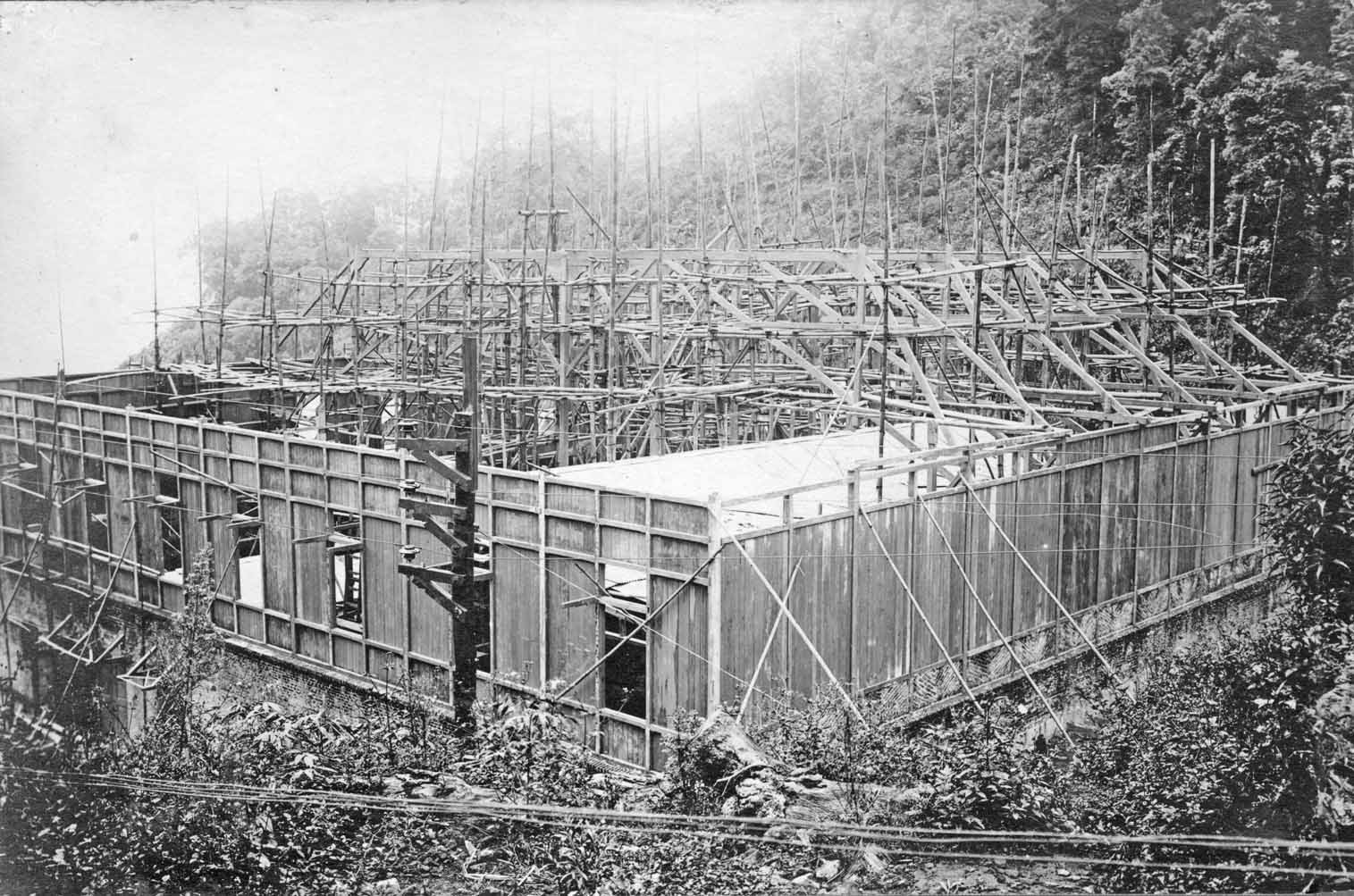

Opbouw Hoofdgebouw





October 1920





November 1920





November 1920

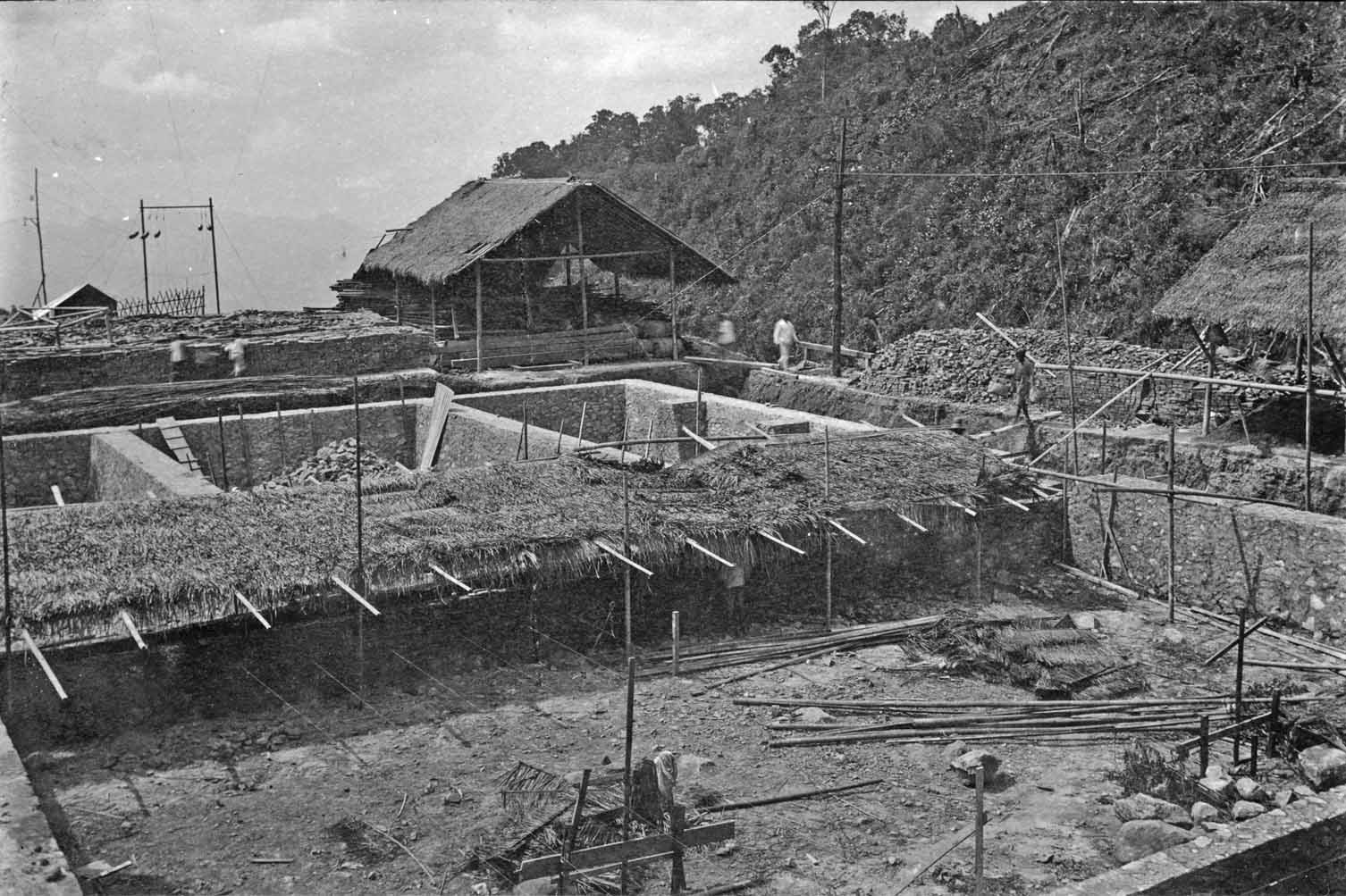

Opbouw Hoofdgebouw

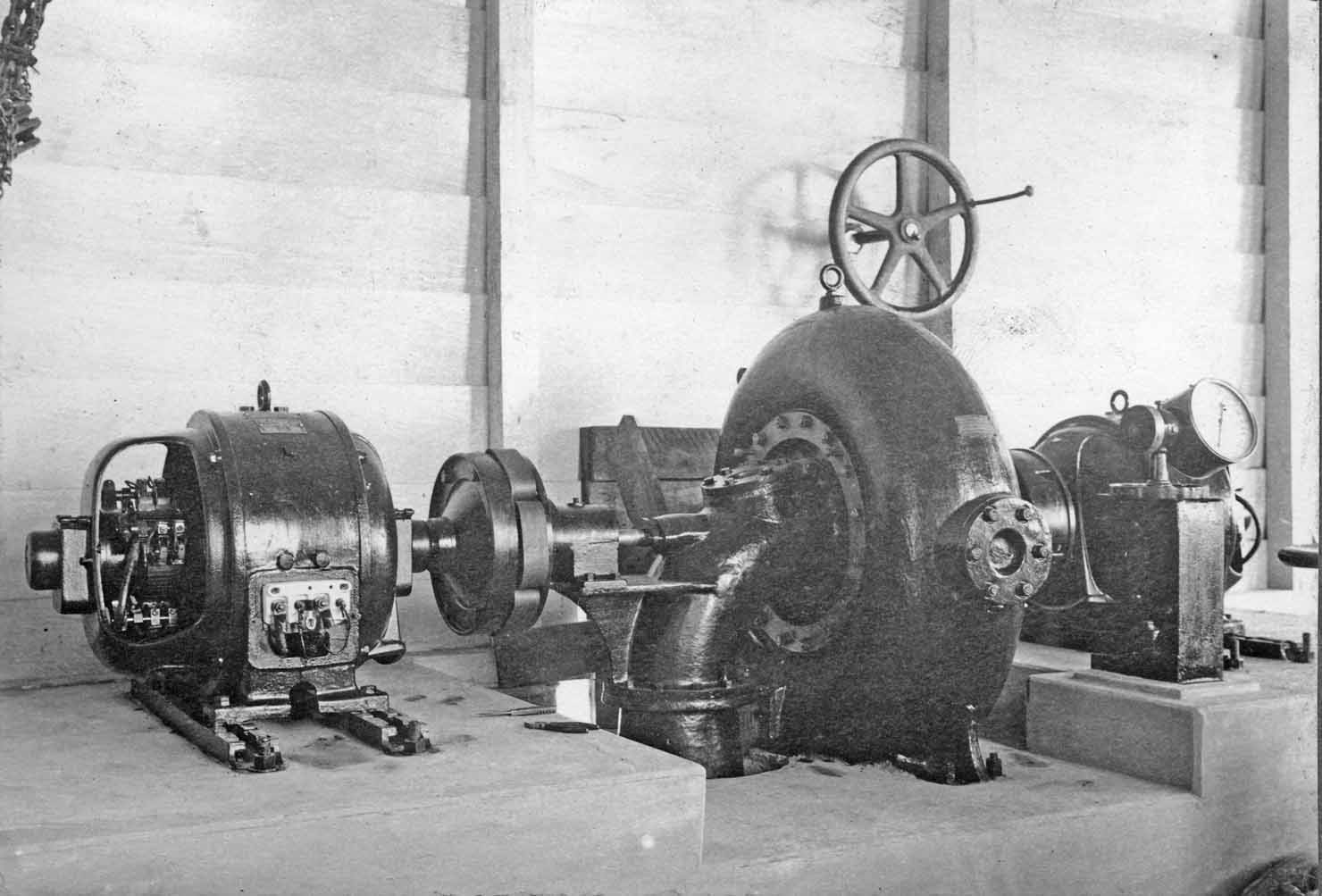

Waterturbine voor opwekking energie

We have seen a similar photo, which might implicate that more than a single turbine was being operated. Considering, however, the premature stage of construction, this set up was likely for supplying power for illumination and that like. I guess, electrical welding was not yet practised.







Page 23

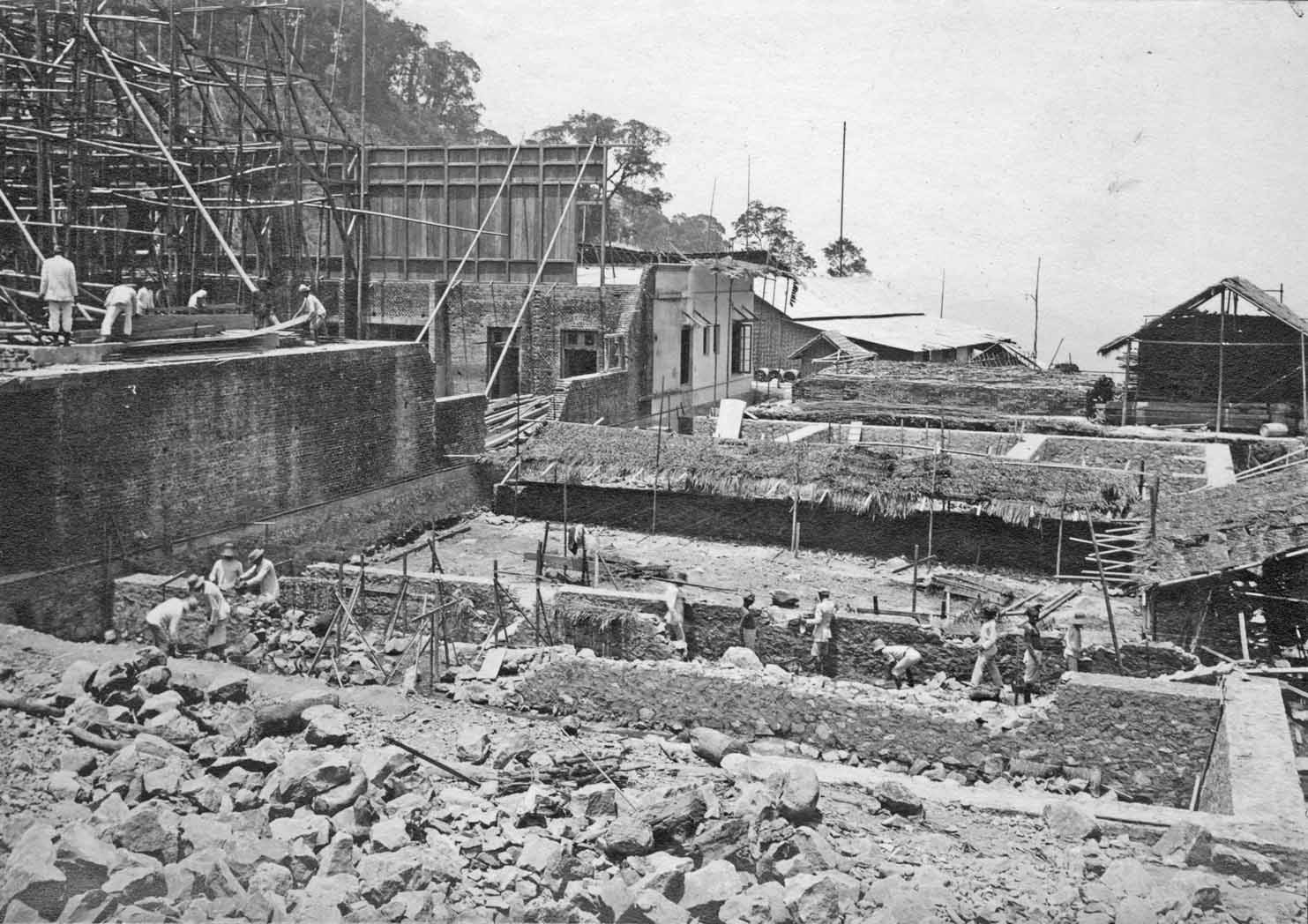

Bygebouwen





November 1920





November 1920





November 1920

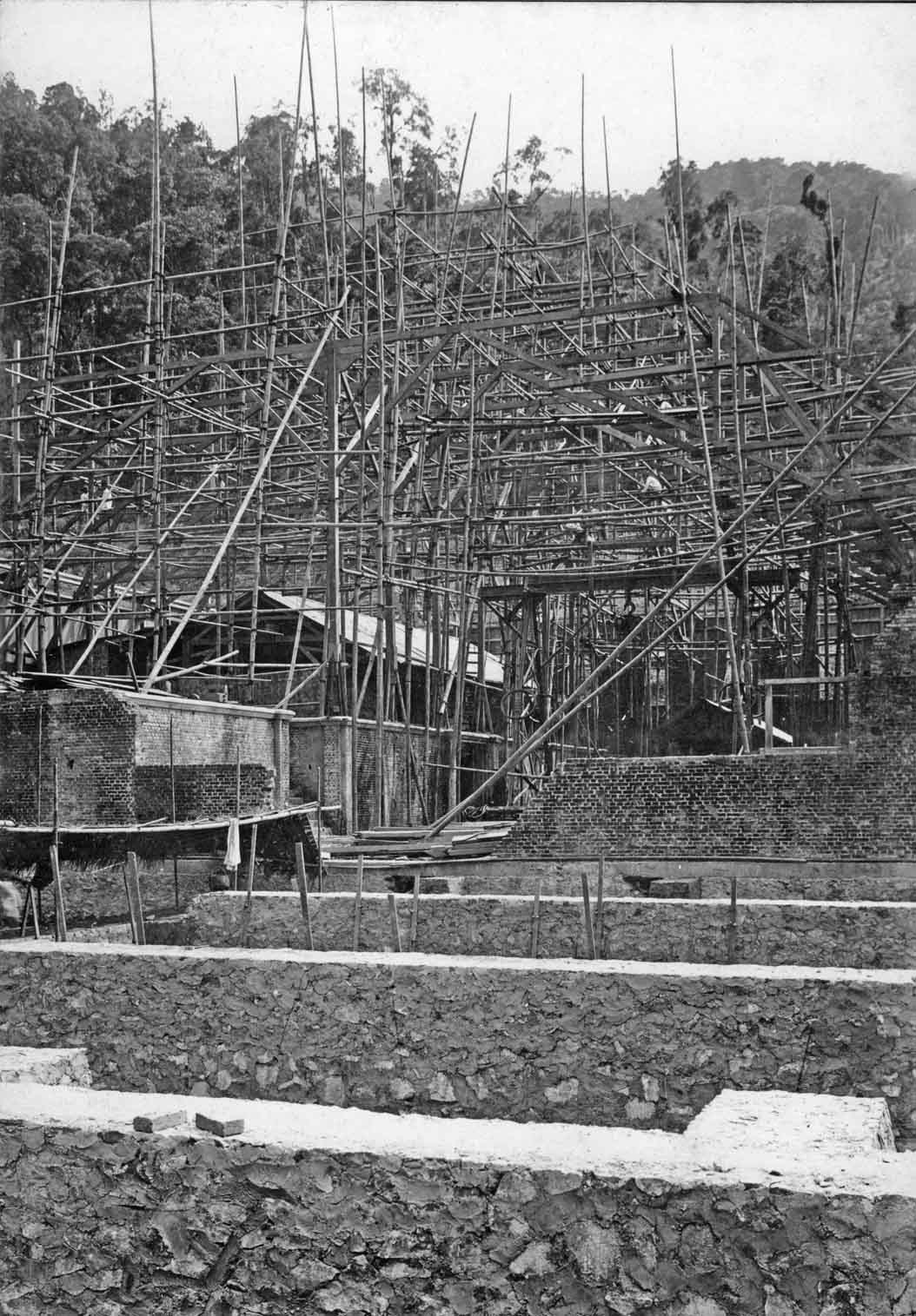

A nice example of using bamboo for construction work





Page 24

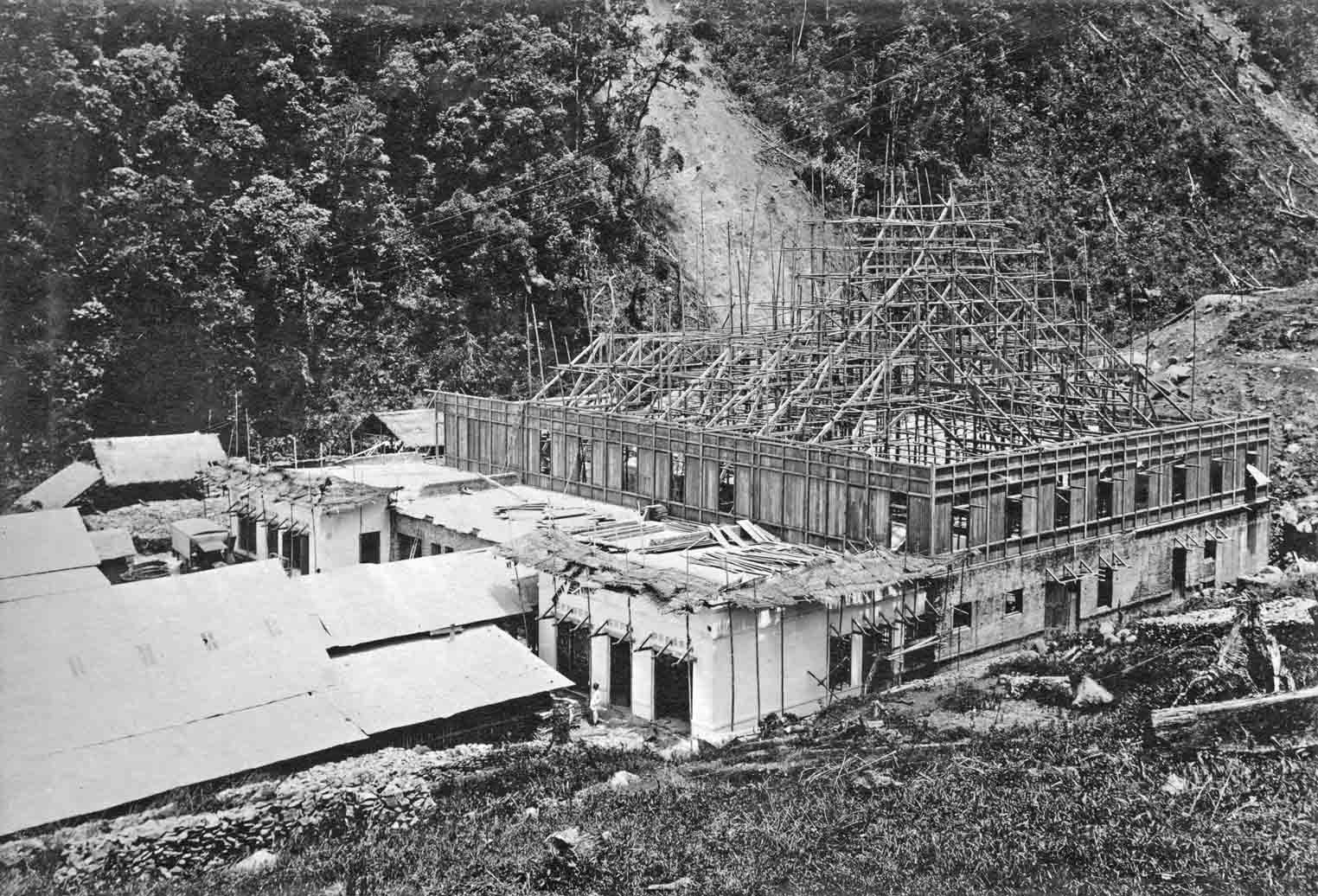

Dakconstructie Hoofdgebouw





November 1920





December 1920

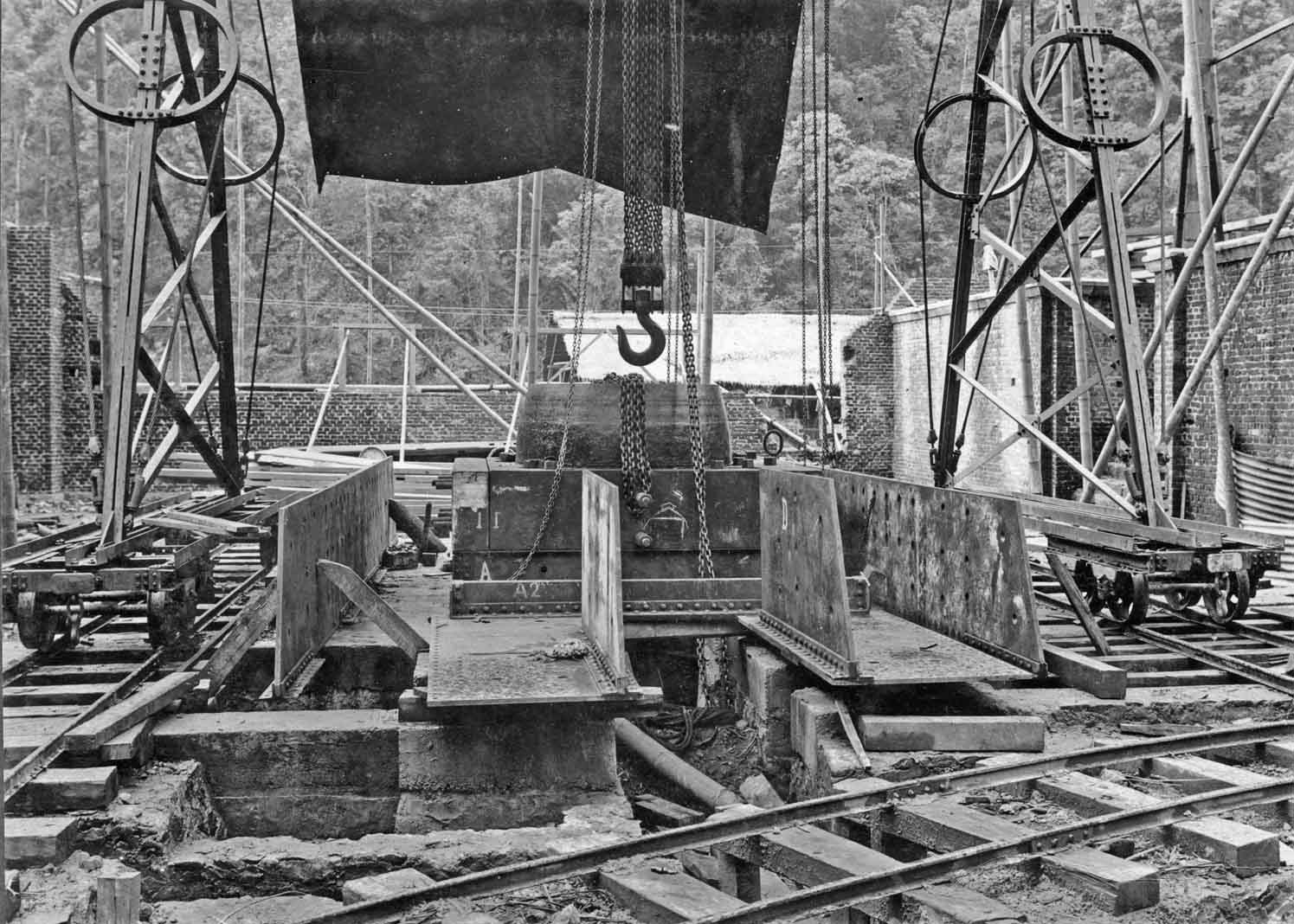

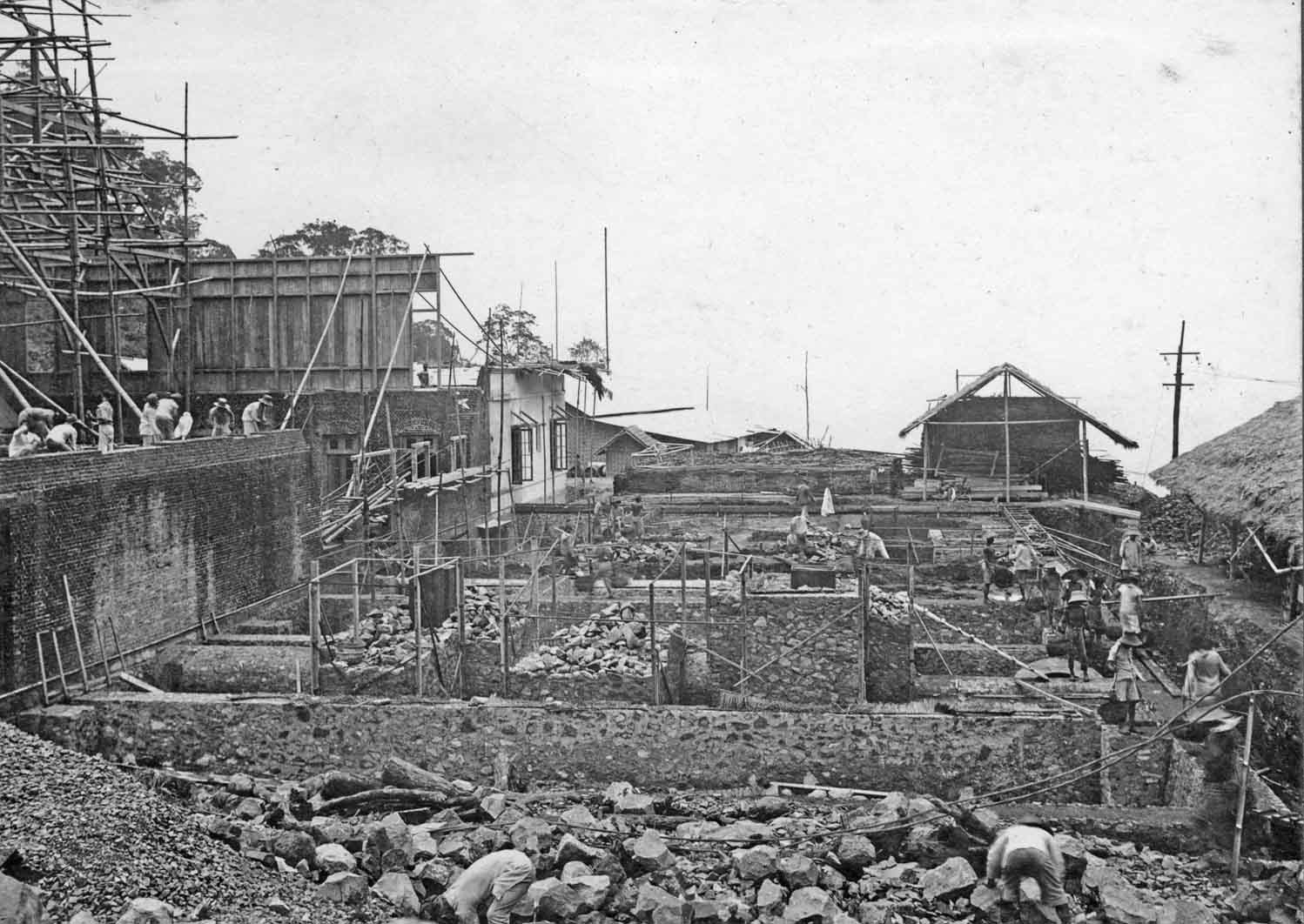

Betonconstructie





November 1920





December 1920





December 1920





Page 25

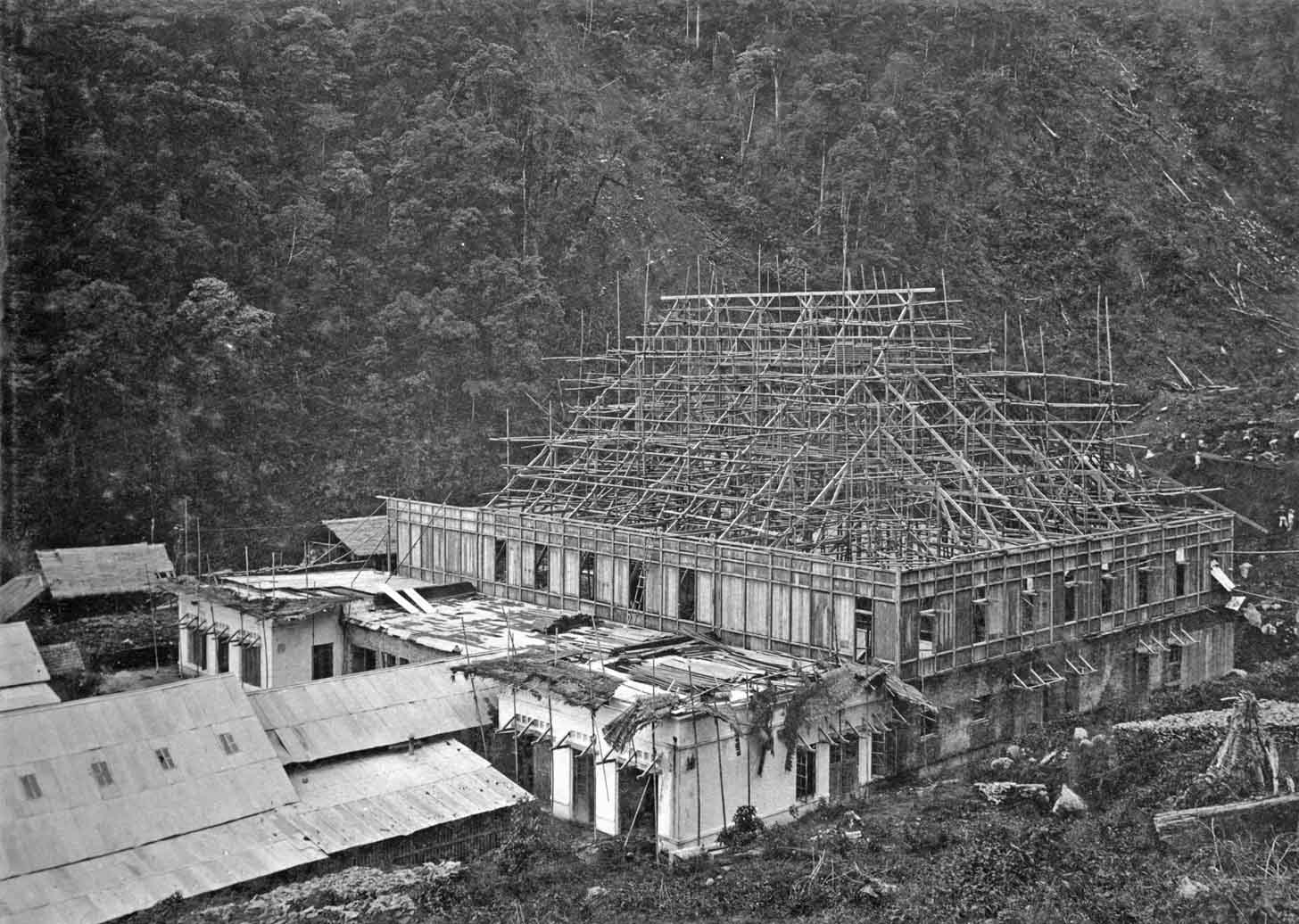

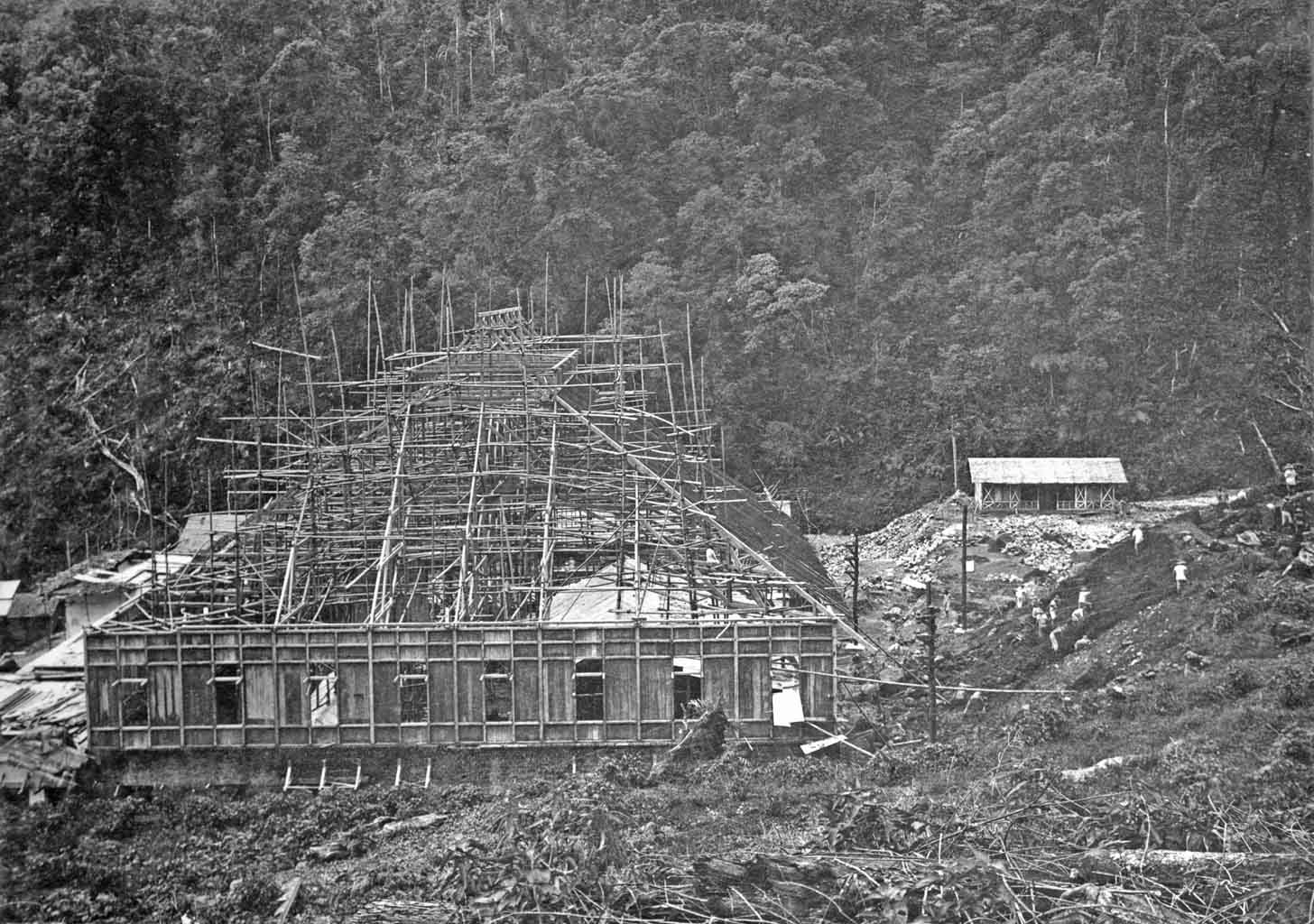

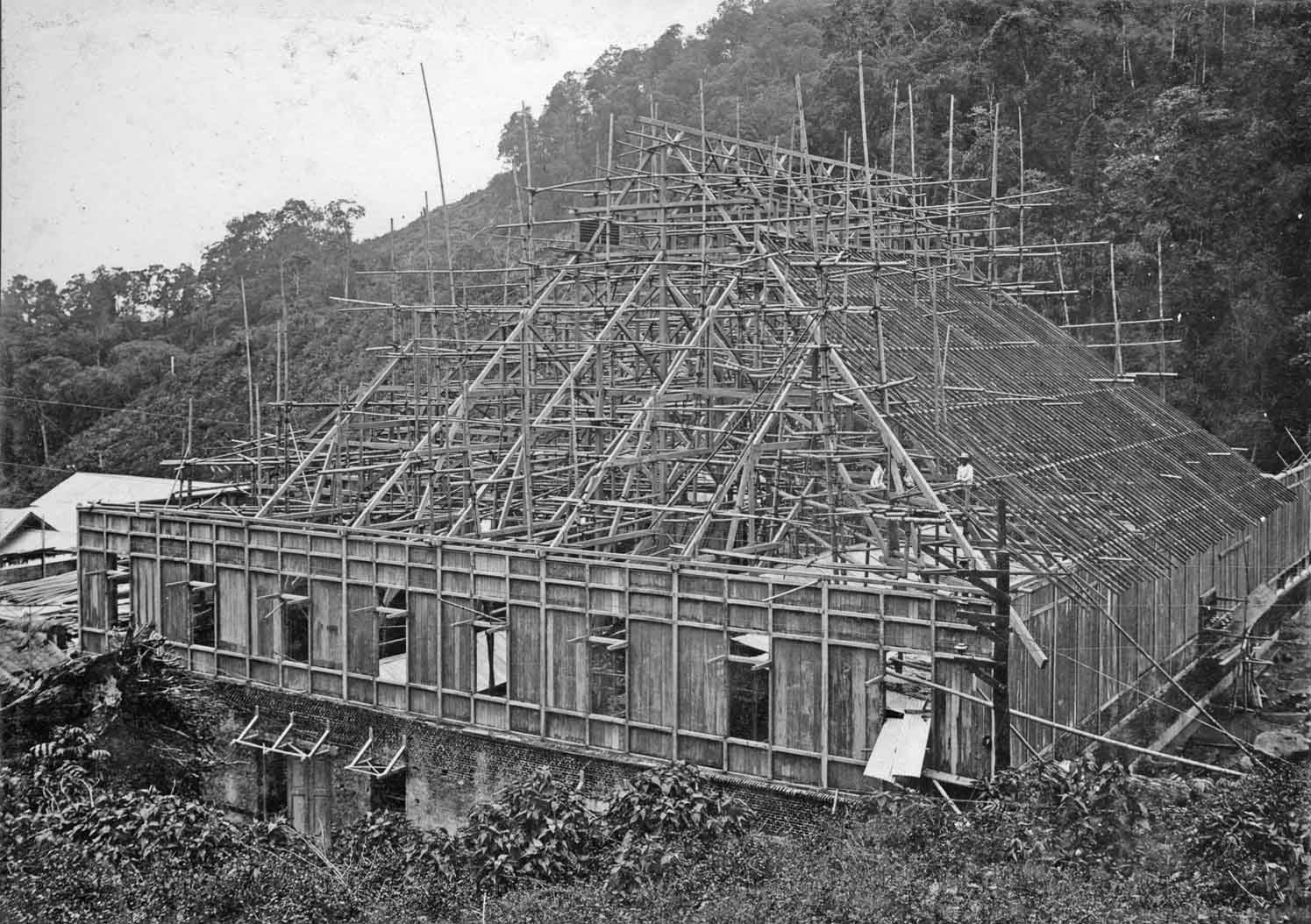

Dakconstructie Hoofdgebouw





December 1920





December 1920





December 1920





Januari 1921

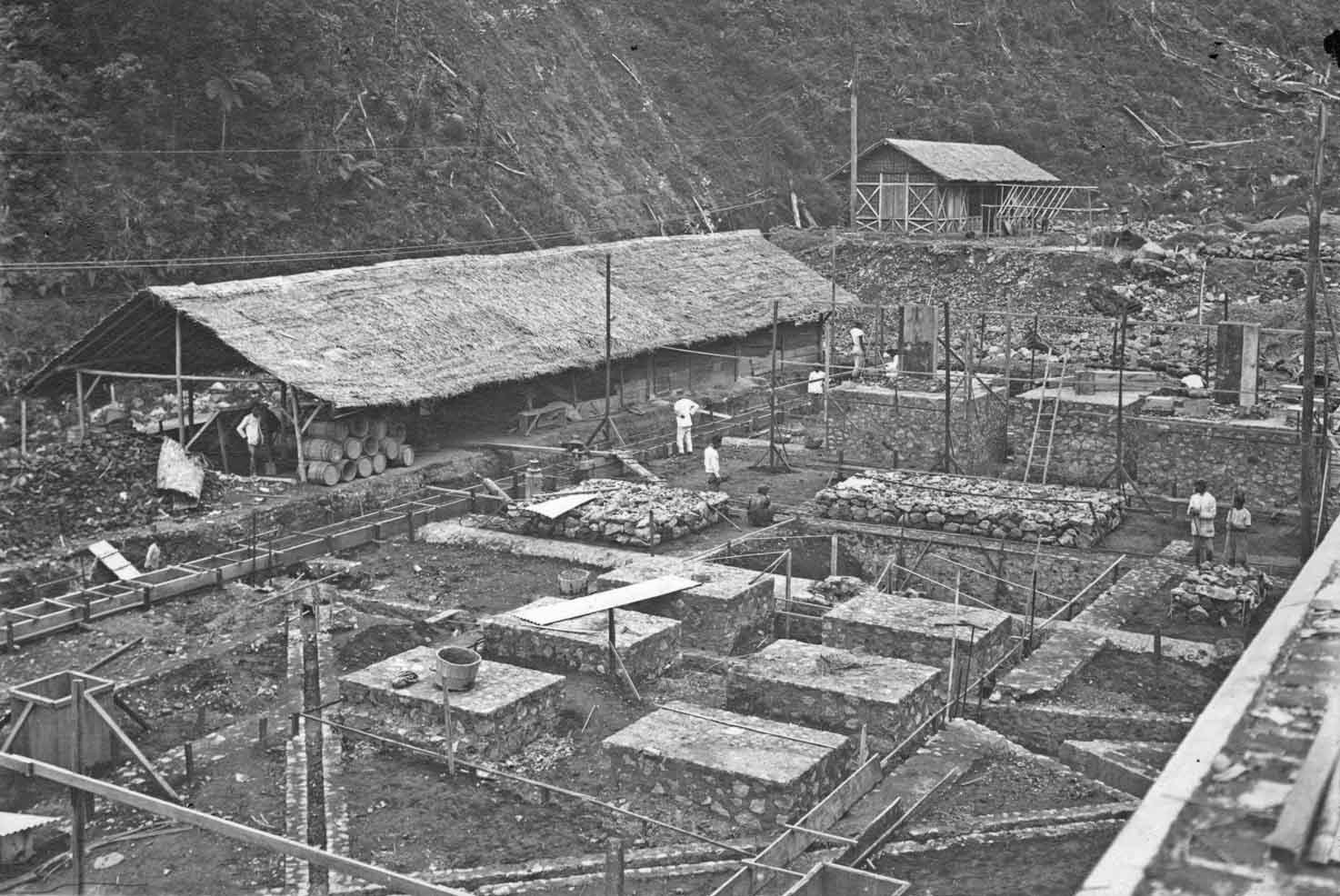

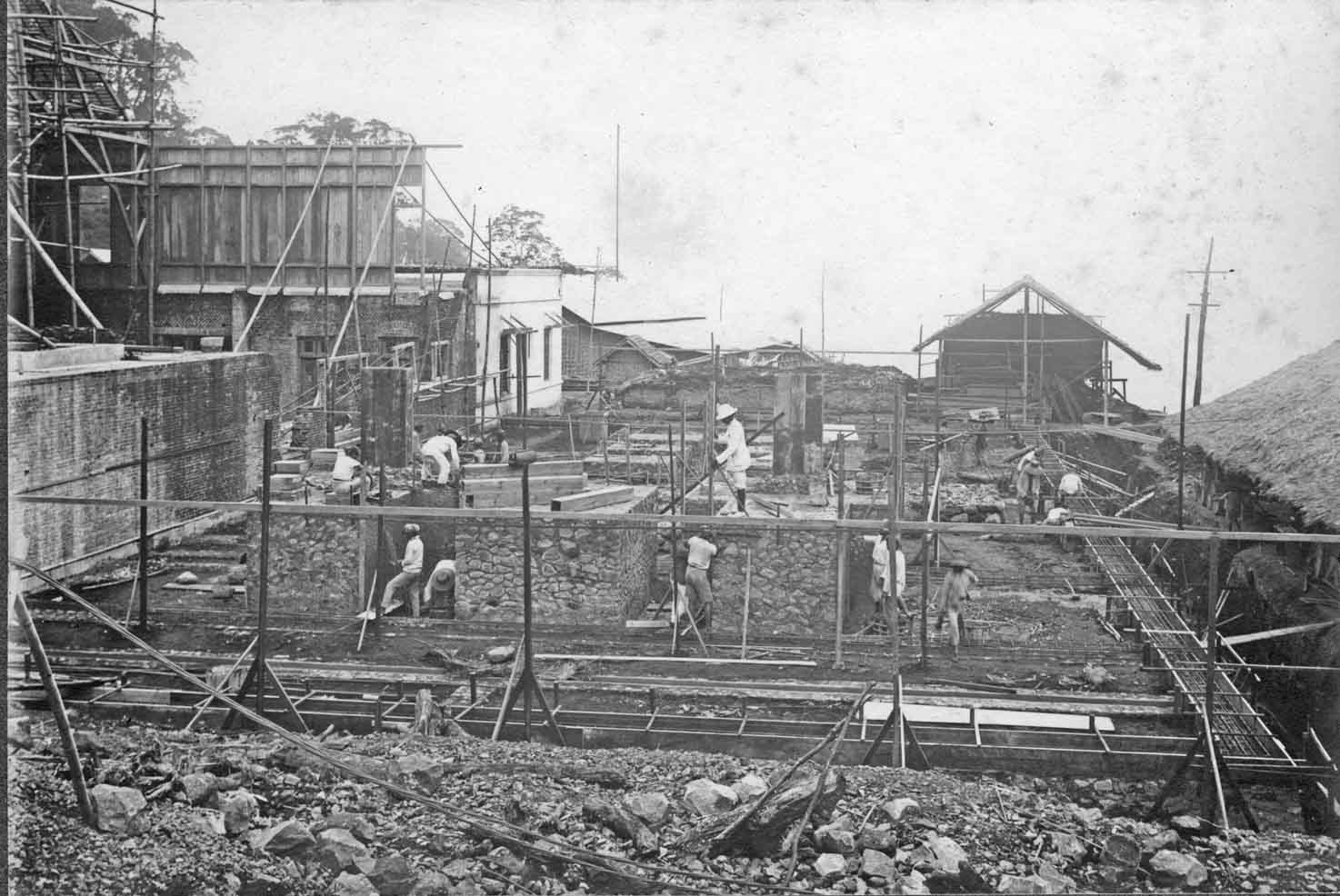

Although, not mentioned, cast-frames being build for the concrete building foundation







Page 26

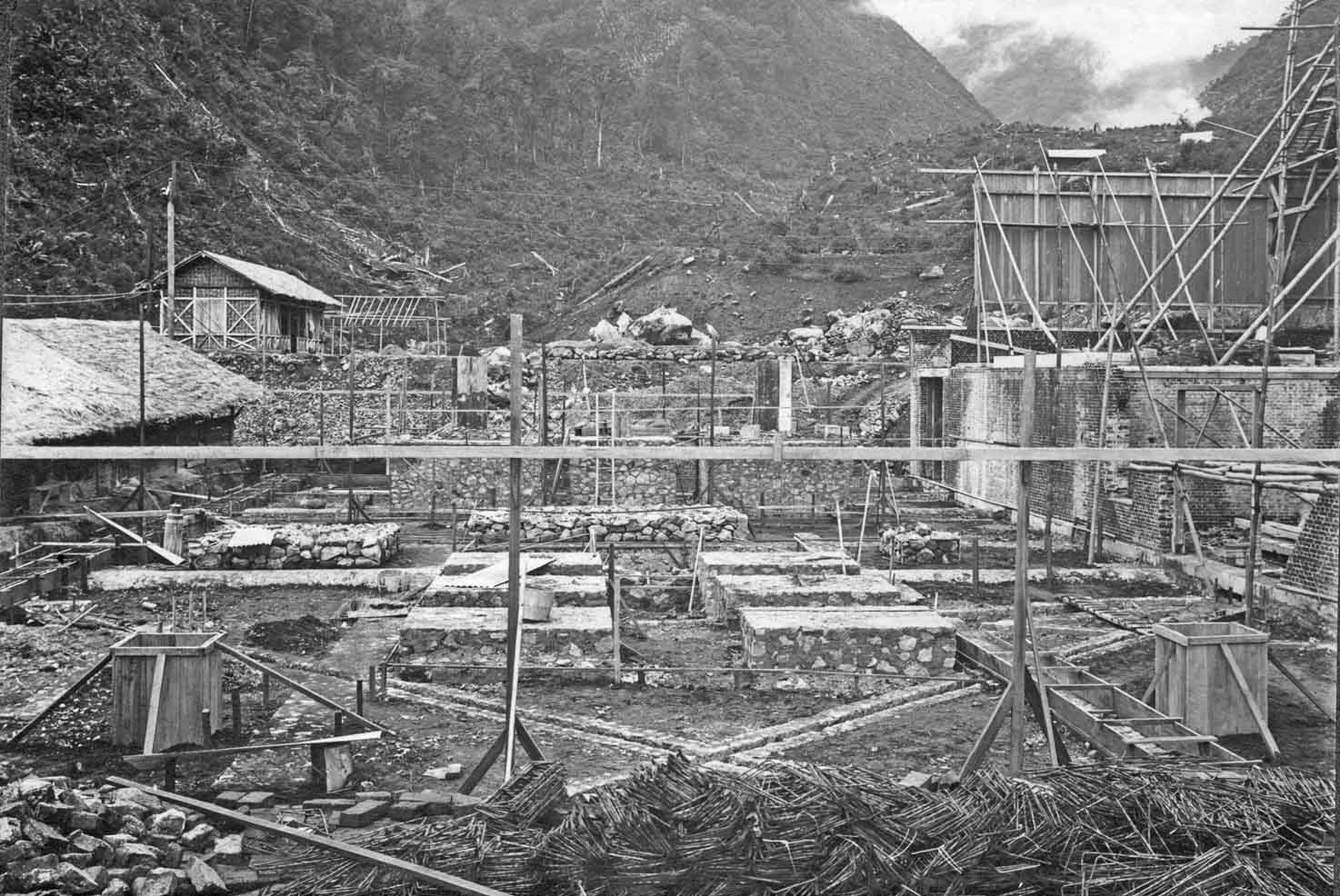

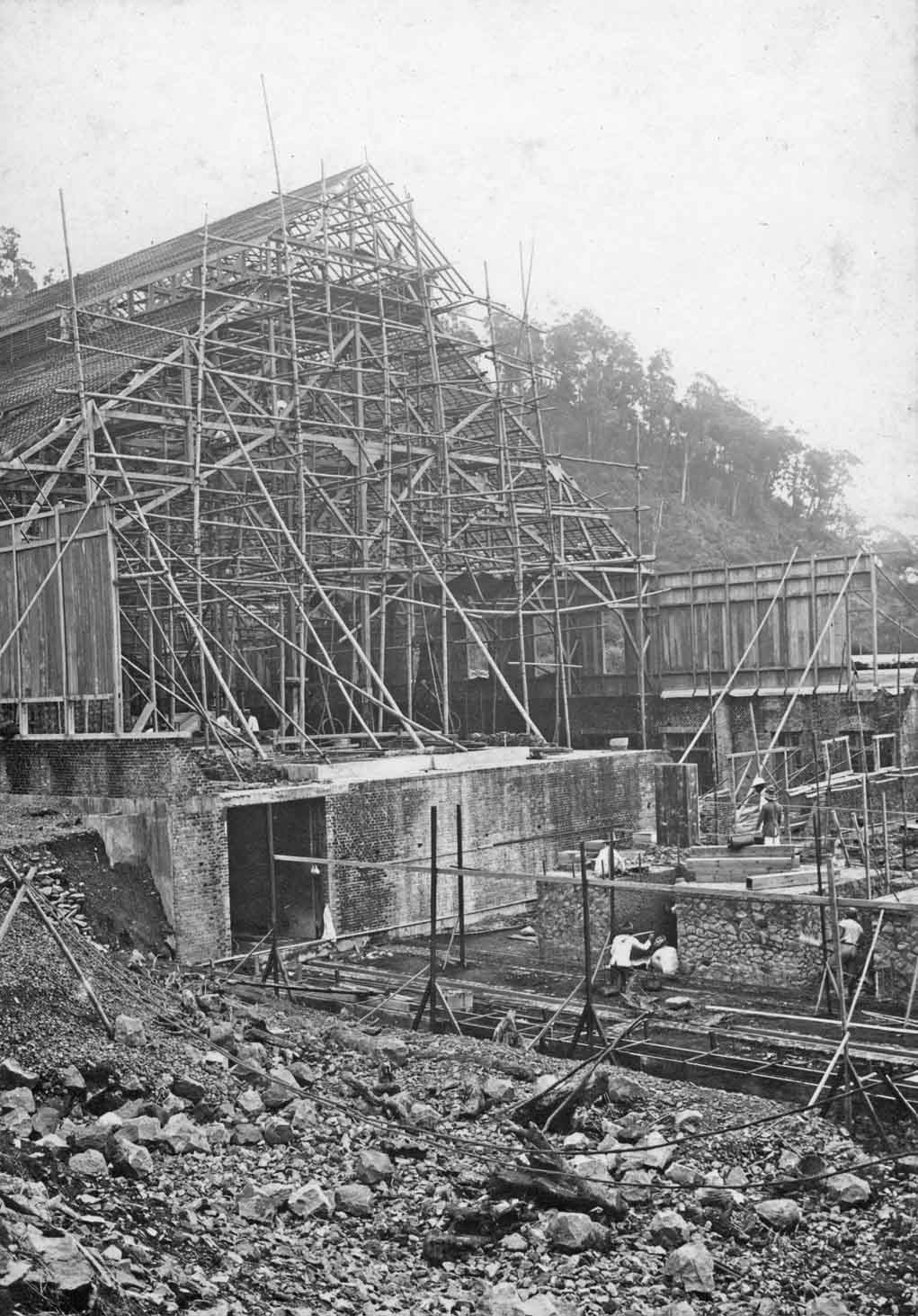

Constructie van bamboe en hout





Januari 1921

In the background we see the entrance of the canyon





Januari 1921

In the background up on the left-hand side we notice what once was designated Kabelgleuf. Translating this briefly: cable groove. In my perception, this implies that cables should pass through it. How? I don't know. The direct route towards the Bandung area is not passing there. What might have been, is that an external high voltage line be it cable or an open wire construction should have used this trajectory.





Januari 1920



The photo sequence is not entirely consequent, but we reproduce this albums as it once was created.

Finish of the pages 20 - 26

Please continue with: page 27
